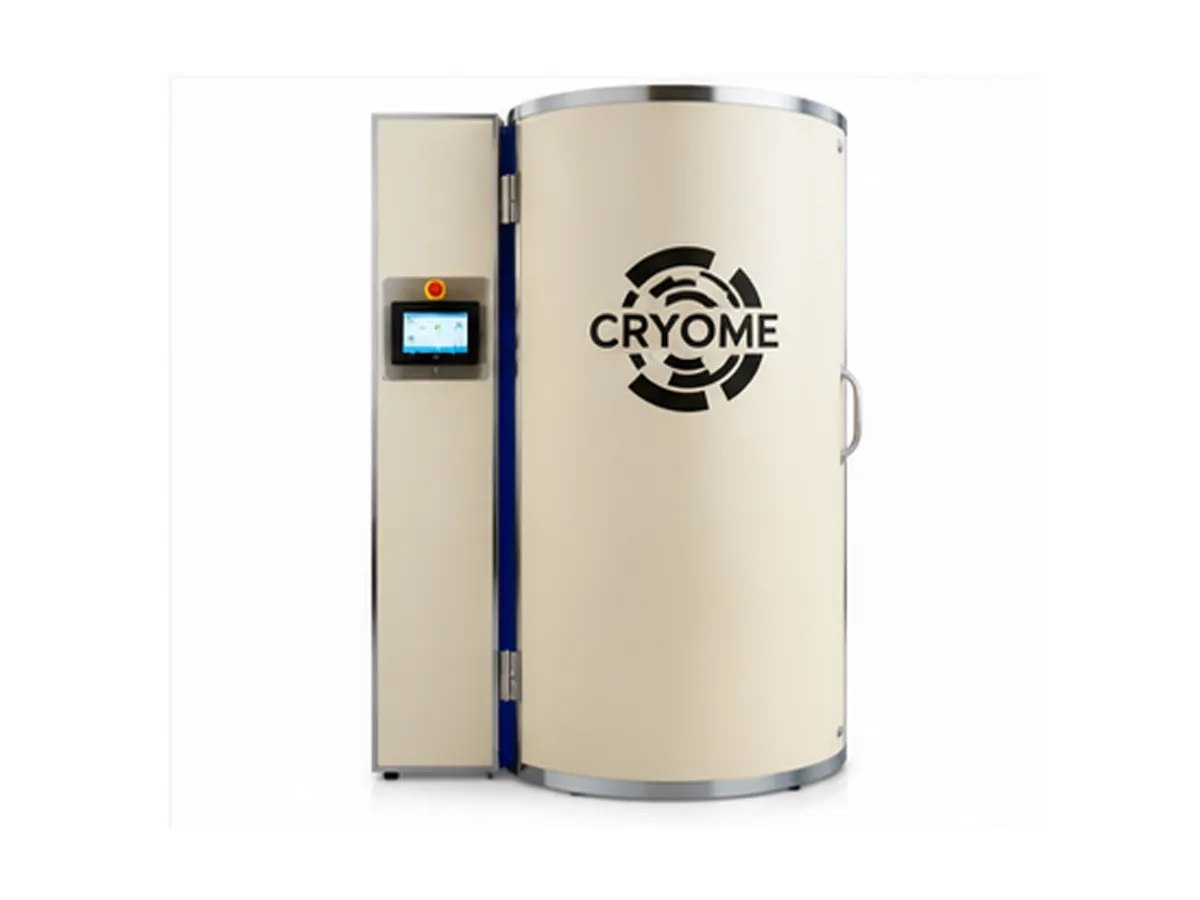

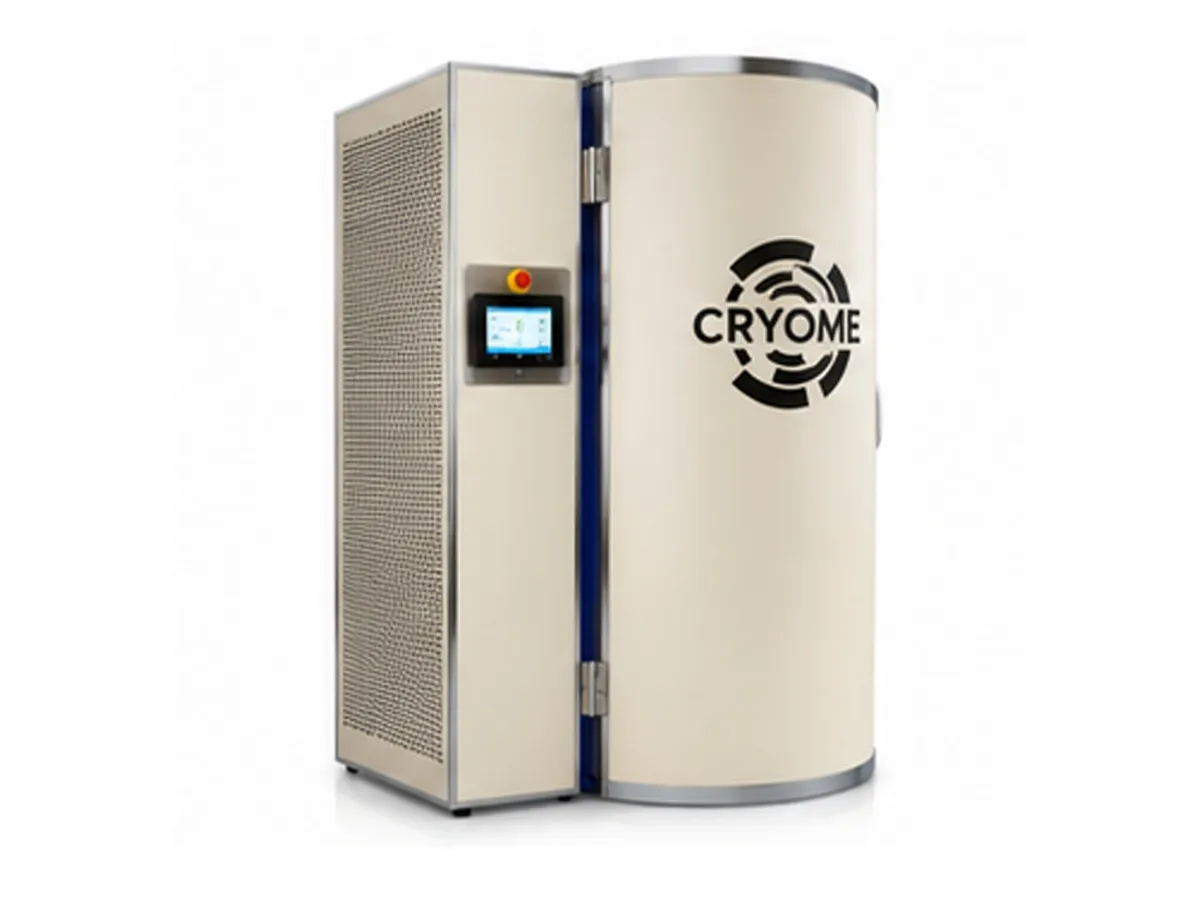

Arctic Zero Mini Cryotherapy Chamber
A fully automated cryosauna that needs no assembly, with a 7" touch screen, a 1 m² footprint and an operating range of −110 to −180 °C.
Compact, fully automated cryosauna (Cryome Mini) with a 7" touch screen, 1 m² footprint and operating range of −110 to −180 °C, supplied with a 3-year warranty.
Architectural Design & Therapeutic Intent
The Arctic Zero (Cryome Mini) is a compact cryosauna built for centres that want to offer cryotherapy in a small space. It has a footprint of about 1 square metre, with overall dimensions of roughly 176 cm high, 112 cm long and 95 cm wide, and it does not require assembly.
Operation is fully automated to help prevent human error, controlled from a 7" touch screen with intuitive operation. An electric elevator adjusts the customer's position in the cabin, and the unit connects over Wi-Fi or LAN for remote maintenance and software updates.
The Mini runs at −110 to −180 °C with a pre-cooling time of up to 5 minutes, and is supplied with a 3-year warranty. Liquid nitrogen can be supplied from a pressurised tank or a non-pressurised Dewar.
Automated Liquid-Nitrogen Cold Exposure
The cryosauna cools its cabin using liquid nitrogen, pre-cooling in up to 5 minutes and running short sessions under automated control.
- 1Operating temperature range of −110 to −180 °C.
- 2Pre-cooling to −100 °C uses about 3.25 litres of liquid nitrogen.
- 3A 3-minute session uses about 2.48 litres of liquid nitrogen.
- 4Fully automated operation helps prevent human error.
Engineered Capabilities & Advanced Controls
No Assembly Required
Delivered ready to install, with a compact 1 m² footprint.
7" Touch Screen
Intuitive operation from a 7" touch screen with Wi-Fi / LAN connectivity.
Fully Automated
Automated operation is designed to prevent human error.
Electric Elevator
An electric elevator adjusts the customer's position in the cabin.
Remote Support
Remote maintenance and software updates over Wi-Fi / LAN.
Built-In Safety
Nitrogen overflow and level sensors, open-door sensor, pressure release valve and emergency stop.
Evidence-Based Biological Benefits
Small Footprint
Fits a treatment room with a footprint of about 1 m².
Quick to Start
Pre-cooling takes 5 minutes at most.
Peace of Mind
3-year warranty with operator training provided onsite and through a free online course.
Full Technical Specifications
Performance & Power Specifications7 Parameters Calibrated
Turnkey Delivery & Included Components
Recommended Session Protocols
Calibrated to maximize therapeutic outcome without triggering biological exhaustion.
Cumulative regenerative benefits compound with consistent weekly integration.
- •Cryotherapy is not suitable for everyone. Consult a medical professional before use, especially if you have a heart or circulation condition.
Step-by-Step Operator & User Procedure
Pre-Session Checklist
- Operate the unit only with a trained operator, and follow the manufacturer's training and safety procedures.
- Pre-cool the cabin (up to 5 minutes) before the first session.
Session Execution Steps
Fit the protective cover and collar, gloves and footwear, and set the elevator to the guest's height.
Run the automated session from the touch screen for the programmed time.
Leave the cabin carefully, and check nitrogen level and supply before the next guest.
Turnkey Facility Integration
Longevity & Wellness Centres
A small-footprint cryo station for premium recovery menus.
Gyms & Sports Teams
Quick sessions between training blocks.
Spas & Clinics
An automated unit that fits a single treatment room.
