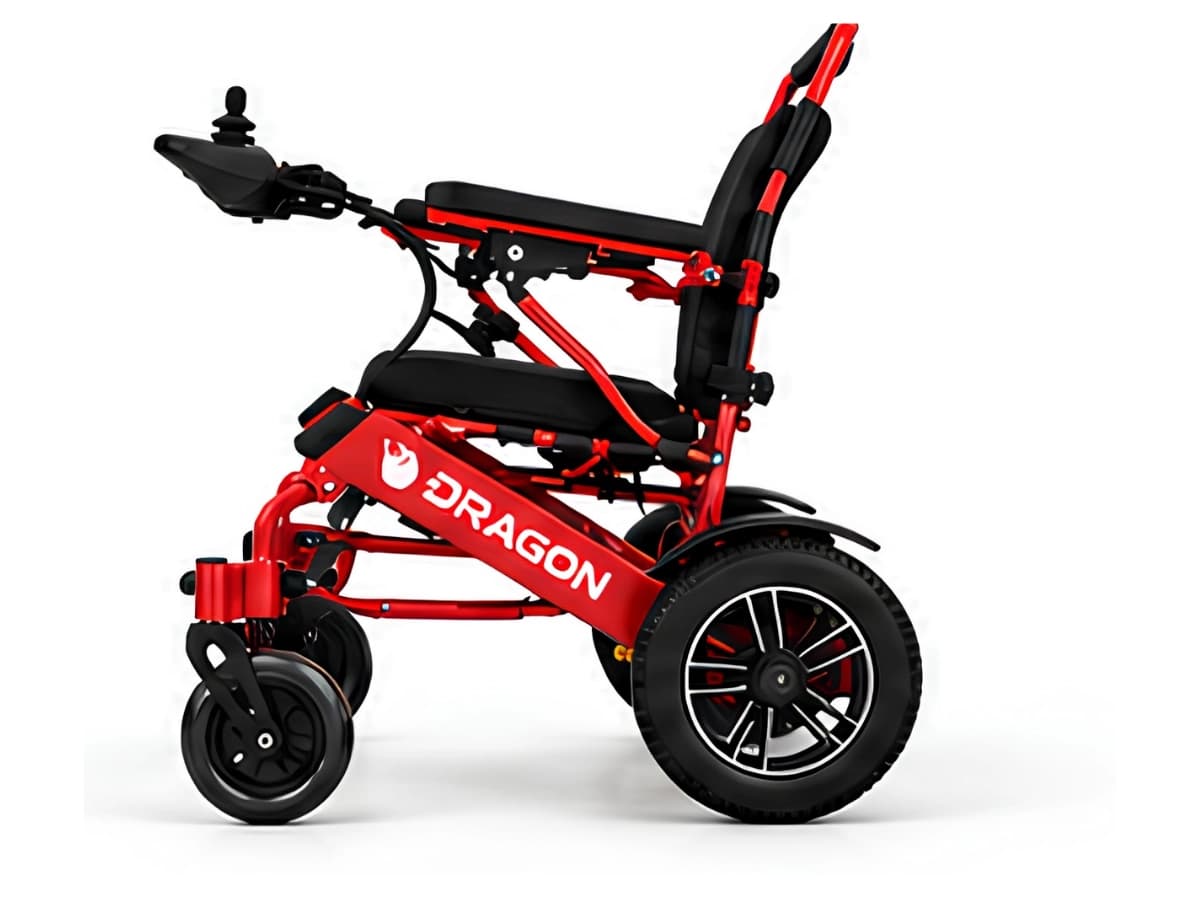

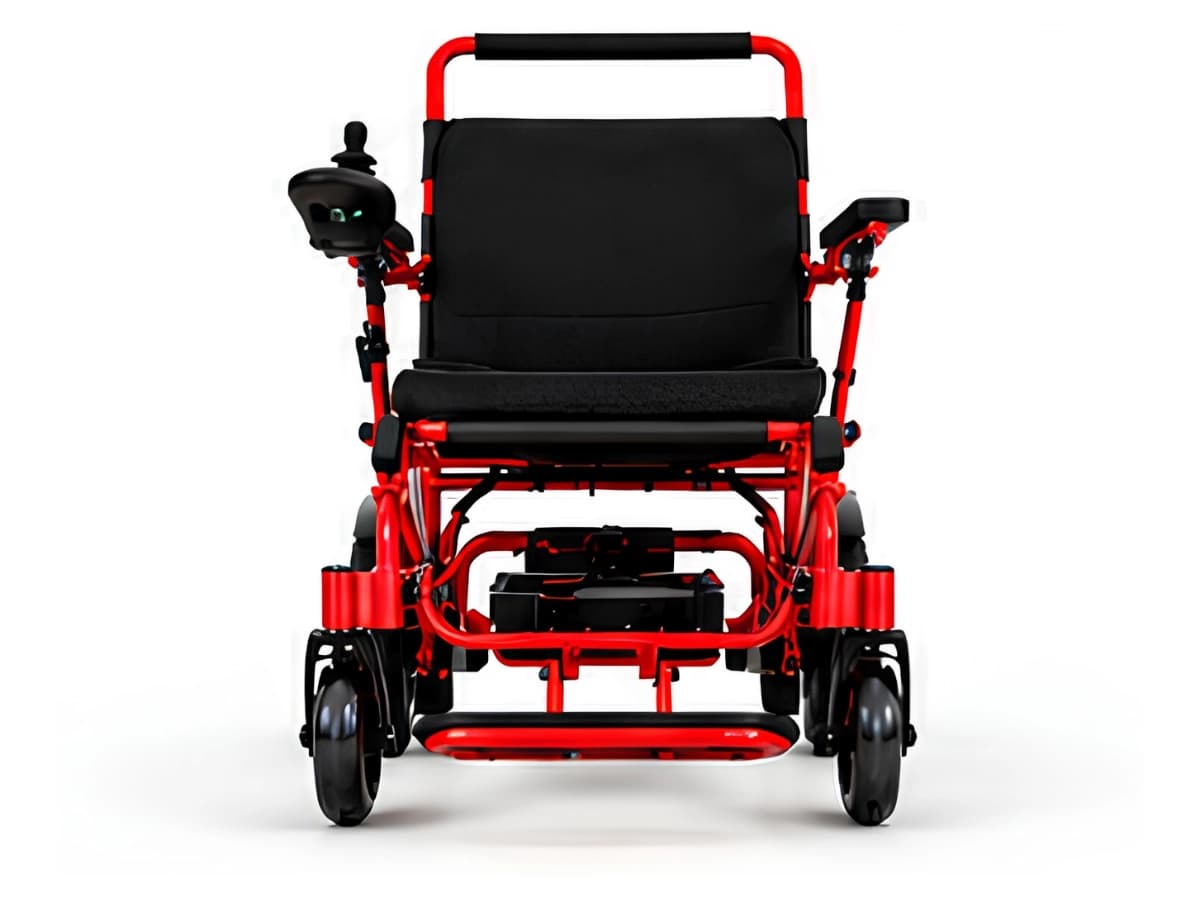

Glide Core Wheelchair
An ergonomic aluminium folding chair with 250 W × 2 motors, 45 cm seat (51 cm optional) and a 20 km range.
Ergonomic folding electric wheelchair (Model DW-605J) with an aluminium frame, 250 W × 2 motors, 20 km range and a 45 cm seat (51 cm optional).
Architectural Design & Therapeutic Intent
The Glide Core (Catalog Model DW-605J) is an ergonomic, heavy-duty folding electric wheelchair with an aluminium-alloy frame. It weighs 23.3 kg without the battery and folds to 68 × 42 × 73 cm.
Two 250 W DC motors run from a 24 V 12 Ah or 20 Ah lithium-ion battery to a top speed of 6 km/h and a driving range of 20 km. Weight capacity is 100 kg, and an electromagnetic brake holds the chair.
Standard seat width is 45 cm with a 51 cm option. An adjustable headrest and a manual rear recline mechanism are available as options.
Folding Aluminium Frame with DC Motors
Two DC motors drive the 12-inch rear wheels, and an electromagnetic brake holds the chair when stopped.
- 1Aluminium alloy frame, 23.3 kg without battery.
- 2250 W × 2 DC motors.
- 324 V 12 Ah / 20 Ah Li-ion battery options.
- 4Electromagnetic brake.
Engineered Capabilities & Advanced Controls
Heavy-Duty Folding Frame
Aluminium alloy, folds to 68 × 42 × 73 cm.
Seat Width Options
45 cm standard, 51 cm optional.
Optional Comfort Upgrades
Adjustable headrest and manual rear recline mechanism.
Electromagnetic Brake
Electromagnetic braking system.
Evidence-Based Biological Benefits
20 km Range
Li-ion options of 12 Ah or 20 Ah.
6 km/h Top Speed
Controlled pace for indoor and outdoor.
Full Technical Specifications
Performance Specifications6 Parameters Calibrated
Turnkey Delivery & Included Components
Recommended Session Protocols
Calibrated to maximize therapeutic outcome without triggering biological exhaustion.
Cumulative regenerative benefits compound with consistent weekly integration.
- •A mobility product should be matched to the user. Have a clinician or mobility specialist confirm suitability and seating, and never exceed the stated weight capacity.
Step-by-Step Operator & User Procedure
Pre-Session Checklist
- Charge the battery fully before first use and check the charge level before each trip.
- Check tyres, brakes and the folding lock, and adjust the seat to the user.
Session Execution Steps
Inspect the chair, switch it on and check the battery indicator.
Use the controller at a speed suited to the surroundings and stay within the weight capacity.
Switch off, fold or park on level ground, and recharge after use.
Turnkey Facility Integration
Homecare & Individuals
Personal mobility for everyday life at home and outdoors.
Senior Living
A dependable chair for residents and care teams.
Hospitals & Clinics
A reliable chair for patient movement and rehabilitation settings.
